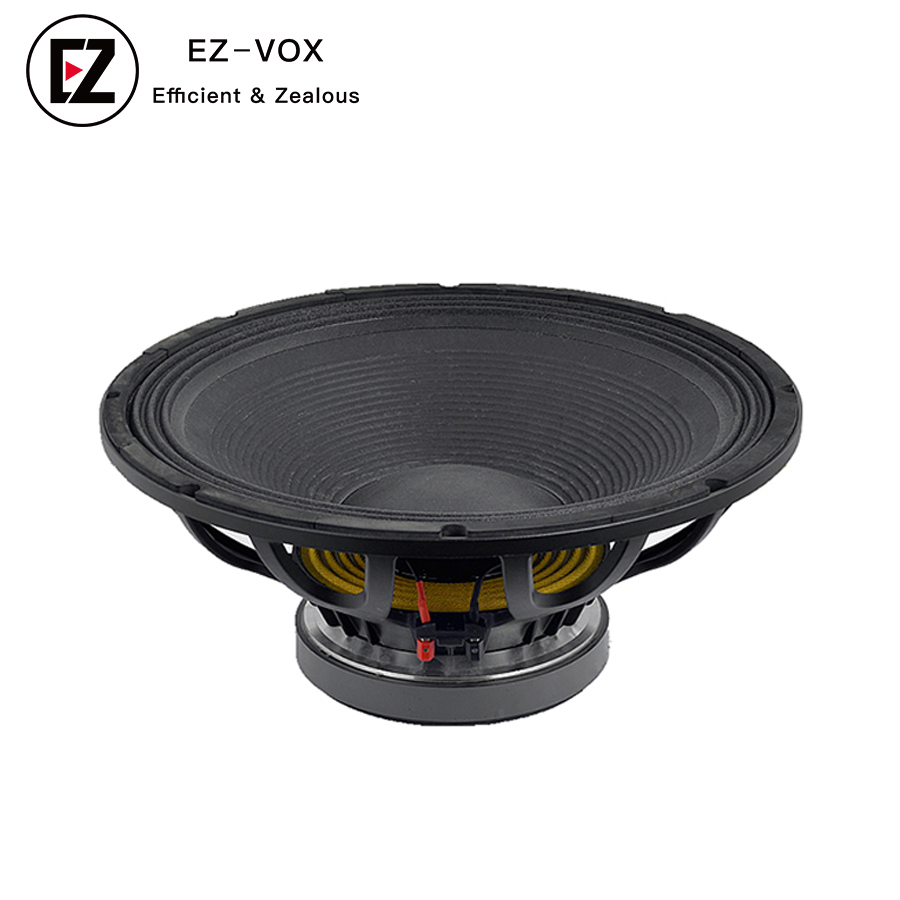

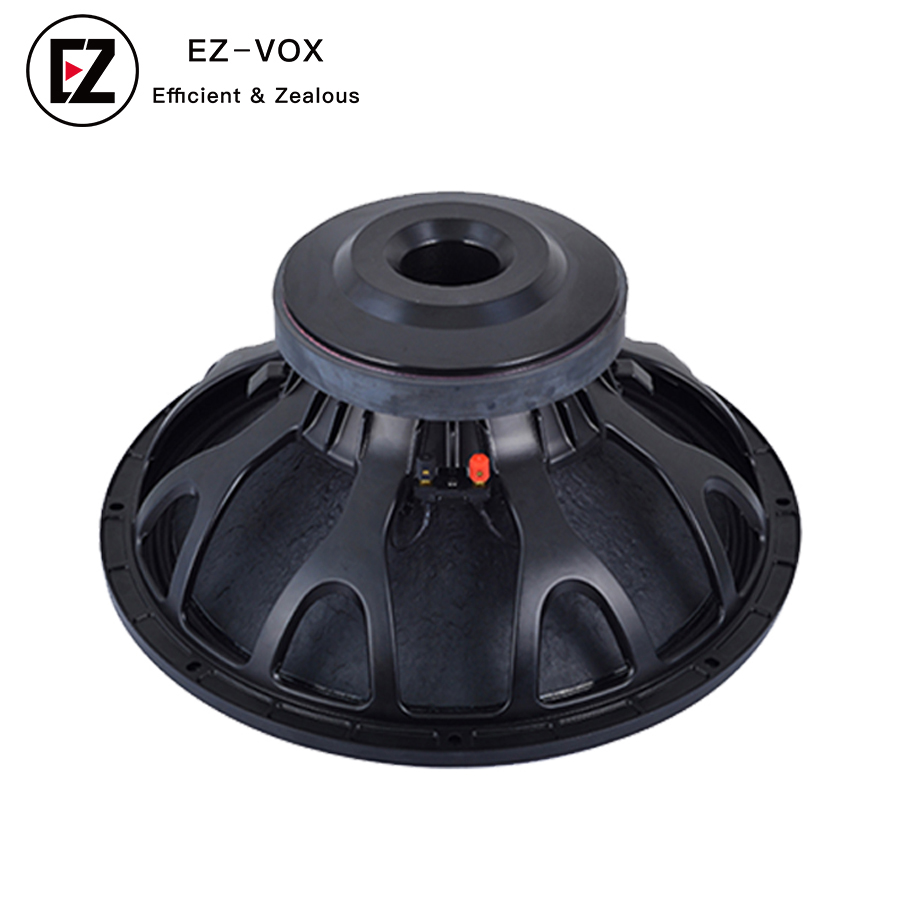

Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The EZ-18HP1030 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 421 mm (16.57 in) |
| Depth | 208.5 mm (8.20 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 12.1 kg (26.7 lb) |
| Shipping Box (Single Carton Box) | 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 13.5 kg (29.8 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.5 Ohm |
| AES Power Handling (1) | 1200 W |
| Maximum Power Handling (2) | 2400 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 35÷1600 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Cu |
| Former Material | Glass Fiber |
| Winding Depth | 28.9 mm (1.14 in) |
