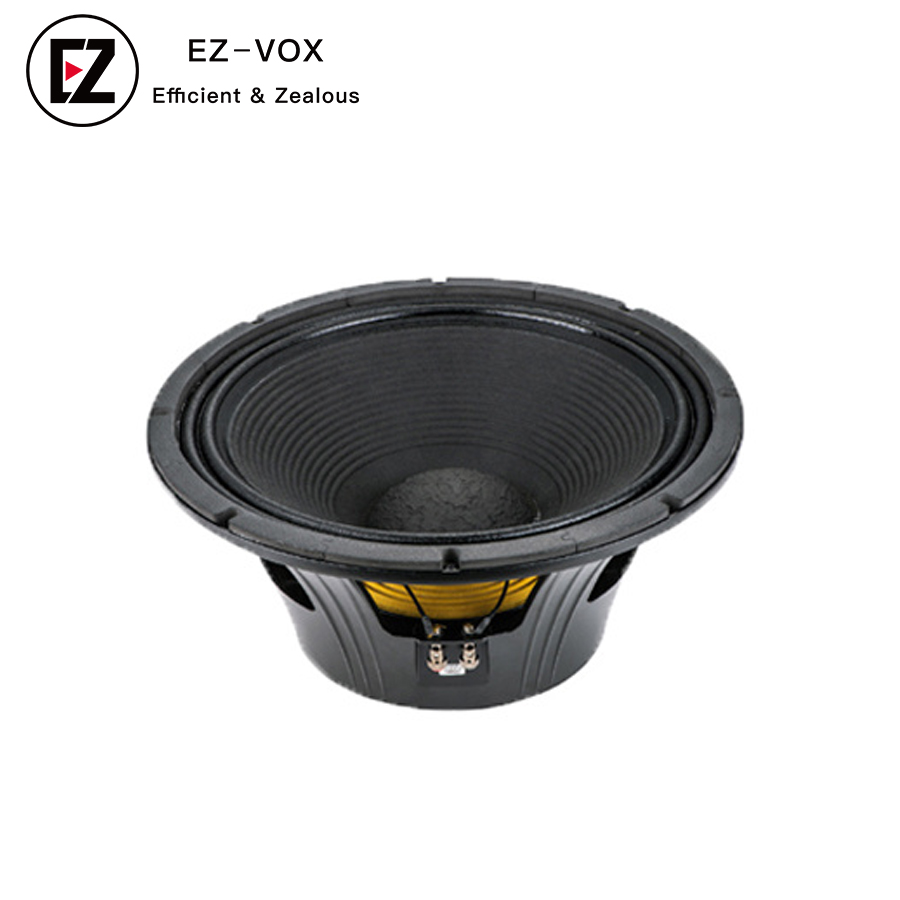

EZ- C18600LF
| General Specification | EZ- C18600LF |
| Norminal Diameter : | 476mm/18inch |
| Power Rating : | 1000W |
| Norminal Impedance : | 8Ohm |
| Sensitivity : | 97dB |
| Frequency Range : | 36Hz-2kHz |
| Chassis Type: | Aluminium |
| Magnet Type: | Ferrite Magnet |
| Magnet Weight : | 220x110x25mm/125OZ |
| Voice Coil ; | 4″/99.2mm |
| Coil Material | SV, Inside -out |
| Former Material : | Glass Fiber |
| Voicecoil Winding Width: | 25mm |
| Cone/Surround Material : | Paper/Cloth |
| Suspension : | Double Spider |
| X-mas: | ±6.0mm |
| N/G Weight | 13/14kg |
| Dimension WxDxH | 51x51x27cm |
